Powerhouse Type E-House

E-HOUSE (Powerhouse) substations are the most important distribution systems for emergency purposes which offer maximum mobility, flexibility, and fast plug-and-play energizing solutions to ensure maximum service continuity in the electricity network.

Turnkey EngineeringPlug-and-PlaySingle-Source Responsibility
Original LMZ Powerhouse Type E-House project photograph
LMZ / POWERHOUSE ENGINEERING

Integrated E-House Engineering

LMZ E-HOUSE (Powerhouse) is designed, manufactured, installed, and tested with single-source responsibility. It delivers high safety, plug-and-play operation, cost savings, and time efficiency while ensuring uninterrupted service continuity. Additionally, we use powerhouse as a part of mobile substations for maximum flexibility.

When needed, the E-HOUSE (Powerhouse) can be easily transported and rapidly energized to resolve the following emergency and temporary situations:

Temporary power supply during the construction of new substations

Maintenance, repair, or unexpected failures at existing substations

Power deficits and capacity shortages in existing substations

Emergency grid services for urban and municipal networks

Civil works and infrastructure projects such as tunnels, dams, and industrial plants

Temporary mobile reactor and capacitor bank applications

E-HOUSE (Powerhouse) structure completely different from Sandwich panel container or container with welded profile. LMZ use special mechanical design and manufacturing technics by using Galvanized, Aluzinc or Alu Sheets without welding.

E-HOUSE (Powerhouse) manufactured in various configurations to suit the available space and are suitable for use on oil and gas sector, industrial, commercial and resident complexes sites. It’s equipped with several modules as below;

Manufactured in customizable configurations to fit available site space, these turnkey substations are fully assembled and factory-tested prior to delivery. They offer a reliable, weather-protected power distribution solution tailored to local grid standards and specific client requirements.

LMZ / ENGINEERING

Key Highlights

Turnkey & Fast Deployment: Factory-assembled and pre-tested as a single unit, reducing on-site installation time from months to days.
Precision Climate Control (HVAC): Equipped with natural/forced ventilation and heavy-duty air conditioning to operate in extreme ambient temperatures up to +55°C.
Enhanced Safety: Features segregated compartments, mechanical interlocks, controlled access doors, and optional FM-200 (HFC-227ea) clean-agent fire suppression.
Weldless Structural Design: Built using specialized mechanical design techniques with galvanized, Aluzinc, or aluminum sheets without welding (unlike standard sandwich-panel or welded-profile containers).
Flexible Configuration: Customizable footprints, modular layouts, and cable entry points.
LMZ / ENGINEERING

Ideal Applications

Utility and Primary or secondary power distribution
Solar and wind renewable energy plants
Industrial facilities and manufacturing sites
Oil and gas sectors
Commercial buildings and new urban or residential developments
LMZ / ENGINEERING

Product Types

LMZ Powerhouse E-House modular electrical enclosure
LMZ Powerhouse E-House with integrated electrical switchgear

1. E-HOUSE (Powerhouse)-Type Transformer Station

An all-in-one outdoor solution featuring three segregated compartments—with the MV and LV compartments positioned at opposite ends of the central transformer compartment:

Medium Voltage (MV) Compartment: Houses GIS, vacuum, or air-insulated switchgear with mechanical interlocks and cable termination access.

Transformer Compartment: Accommodates oil-immersed or dry-type transformers. Equipped with an integrated oil-containment sump (for oil-type units), adjustable transformer rails, internal lighting, and thermostat-controlled exhaust fans.

Low Voltage (LV) Compartment: Houses main incoming circuit breakers, outgoing distribution feeders, metering systems, and optional Power Factor Correction (PFC) panels.

2. E-HOUSE (Powerhouse)-Type MV/LV Distribution Station

An all-in-one outdoor switching and distribution solution combining medium-voltage (MV) switchgear, auxiliary distribution equipment, and low-voltage (LV) distribution panels inside a single weather-protected, climate-controlled metallic enclosure.

LMZ / ENGINEERING

Technical Specifications

Applicable Standards

StandardDescription
IEC / EN 62271-202High-voltage / low-voltage prefabricated substations
IEC 62271-200AC metal-enclosed switchgear and controlgear (MV Switchgears)
IEC 60076Power and distribution transformers
IEC 60529Degrees of protection provided by enclosures (IP Code)
IEC 60721-1Classification of environmental conditions
NFPA 2001 / EN 15004 / ISO 14520Clean-agent fire extinguishing systems (FM-200)

Hazardous Area Classification (Zones): (Zone 0, 1, 2 ve Zone 20, 21, 22).

Design Criteria & Operating Conditions

ParameterSpecification
Installation EnvironmentOutdoor
Maximum AltitudeUp to 1,000 m above sea level (Higher altitudes available per derating)
Ambient Temperature-25°C to +55°C (Design baseline min -10°C; up to +55°C with A/C unit; extended ranges upon request)
Relative Humidity5% to 95% (Non-condensing)
Pollution / Ambient ClassDirty Class 3
Max Solar Radiation1,100 W/m²
Seismic Withstand (Earthquake)0.5 g Horizontal / 0.4 g Vertical
Wind Speed / Dynamic Pressure45 m/s (Wall design dynamic pressure: 2,500 N/m² / Pa)
Insulation ClassUp to 40,5 kV
LMZ / ENGINEERING

Mechanical & Structural Construction

General Enclosure & Protection

ParameterSpecification
Degree of ProtectionIP56 (MV Switchgear & LV Compartments) / IP23D (Transformer Compartment)
Mechanical Impact ResistanceIK10
Enclosure Thermal ClassClass 10 / Class 20 (Per IEC 62271-202)
Fire Resistance RatingClass A1 non-combustible materials / Class F90 (A-B) 90-minute fire resistance
Raised Flooring SystemComplies with DIN 12825; distributed load-bearing capacity over 1 ton

Base Frame & Structural Chassis

ComponentMaterial & Standard
Main Beams / GirdersNPU structural steel profiles — S275 JR (TS / EN 10025-2)
Secondary GirdersHollow sections (EN 10210), IPE, UPN, and L profiles — S235 / S275 JR (TS / EN 10025)
Bottom Plate2 mm & 3 mm steel plate — S235 JR (EN 10025 / ASTM A283C / A570 Gr. 33, 36 eq.)
Base Frame CoatingPrimed with secondary industrial black spray paint
Base Construction MethodFully welded per TS / EN ISO 15607, ISO 4063, EN 287-1, EN 15609

Walls, Roof & Surface Finish

ComponentSpecification
Main Enclosure Structure2 mm galvanized sheet steel (Aluzinc or Aluminum optional) with external bending and double-layer arrangement (TS / EN 10346)
Secondary FramingStructural profiles as required — S235 / S275 JR (TS / EN 10025)
Assembly MethodPartially welded and rivet-mounted
FastenersHex head bolts (DIN 931 Class 8.8 galvanized), hex nuts (DIN 934 Grade 8.8 galvanized), washers (DIN 125-A, DIN 7603 galvanized), and inox monobolt rivets (DIN 7337)
Surface CoatingChemical surface cleaning followed by electrostatic epoxy-polyester powder coating — RAL 7035 (Class C2, thickness 65 ± 10 µm; custom colors available)

Thermal Insulation (Double-Walled Roof & Panels)

Note: Available with Expanded Polystyrene (EPS) or non-combustible Rock Wool per TS / EN 13162 (Fire Class A1, Thermal Conductivity: 0.040 W/mK, Max Operating Temp: 750°C).

Walls: 40 mm Rock Wool / EPS double-layer arrangement

Bottom / Floor: 40 mm Rock Wool / EPS

Ceiling / Roof: 20 mm Rock Wool / EPS double-layer arrangement

Access Doors

Configuration: Double-leaf doors (~2,000 × 2,200 mm total; ~1,000 × 2,200 mm per leaf)

Hardware & Finish: Heavy-duty galvanized handles and hinges, integrated locking mechanism, and electrostatic powder-coated galvanized steel chassis and cover

Steel Raised Platform & Stairway Systems

Maximize Your Vertical Space with Custom-Engineered Steel Solutions

Our heavy-duty Steel Raised Platform and Stairway Systems are designed to optimize workspace efficiency, improve industrial safety, and provide durable access solutions across manufacturing plants, warehouses, and commercial facilities. Built from high-grade structural steel, these systems offer superior load-bearing capacity and long-lasting performance in demanding environments.

LMZ / ENGINEERING

HVAC, Air Conditioning & Ventilation System

Engineered to prevent condensation, remove internal heat dissipation from transformers and switchgear, and ensure reliable operation in ambient temperatures up to +55°C.

Component / ParameterSpecification
Air Conditioning (A/C) UnitsIndustrial heavy-duty wall-mounted or rooftop split/packaged A/C units sized for internal heat loads in MV and LV compartments (N+1 redundant configuration available upon request)
Operating Ambient RatingHigh-ambient tropicalized compressors rated for continuous operation up to +55°C
Natural & Forced VentilationWeatherproof louvers with washable G3/G4 dust and insect filters; thermostat-controlled high-airflow exhaust fans for transformer and auxiliary compartments
Anti-Condensation & HeatingThermostatically and hygrostatically controlled space heaters inside MV/LV compartments to prevent moisture buildup in low temperatures or high humidity
Dampers & Pressure ReliefGravity-operated or motorized fire/smoke dampers integrated with the fire suppression system, plus over-pressure relief flaps
Controls & MonitoringDigital thermostat/hygrostat controllers with high-temperature alarm relays and remote SCADA monitoring contacts
LMZ / ENGINEERING

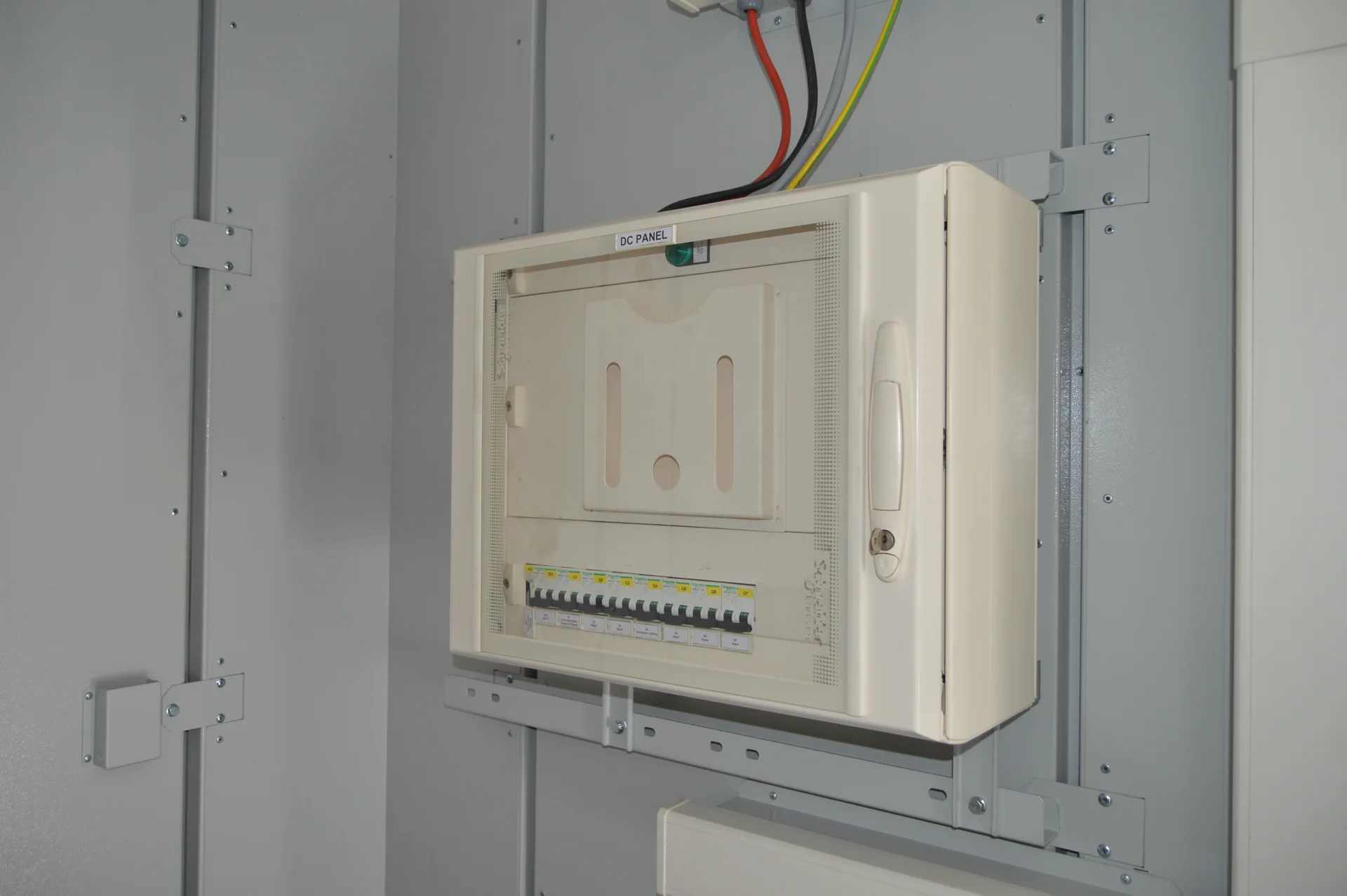

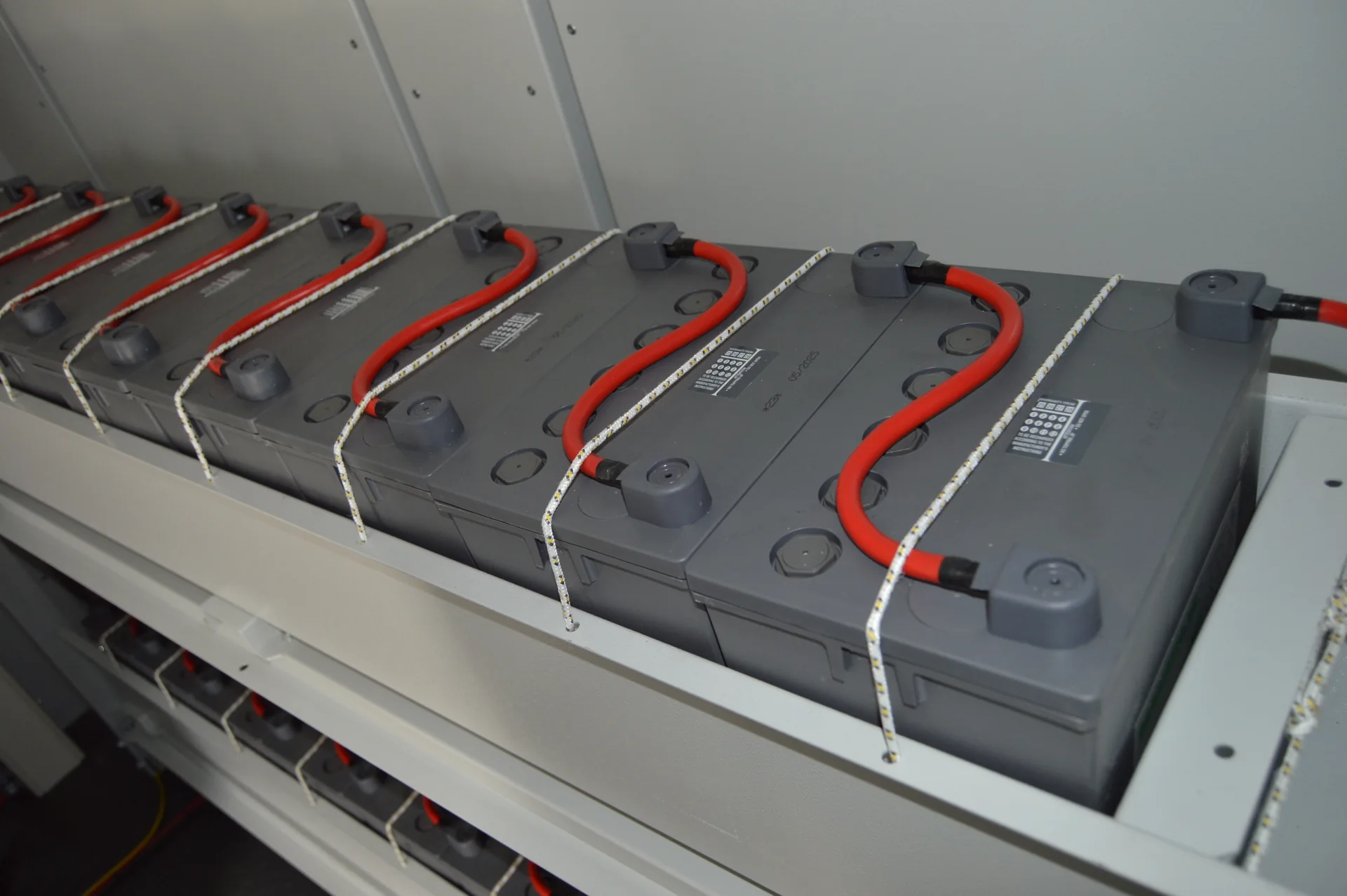

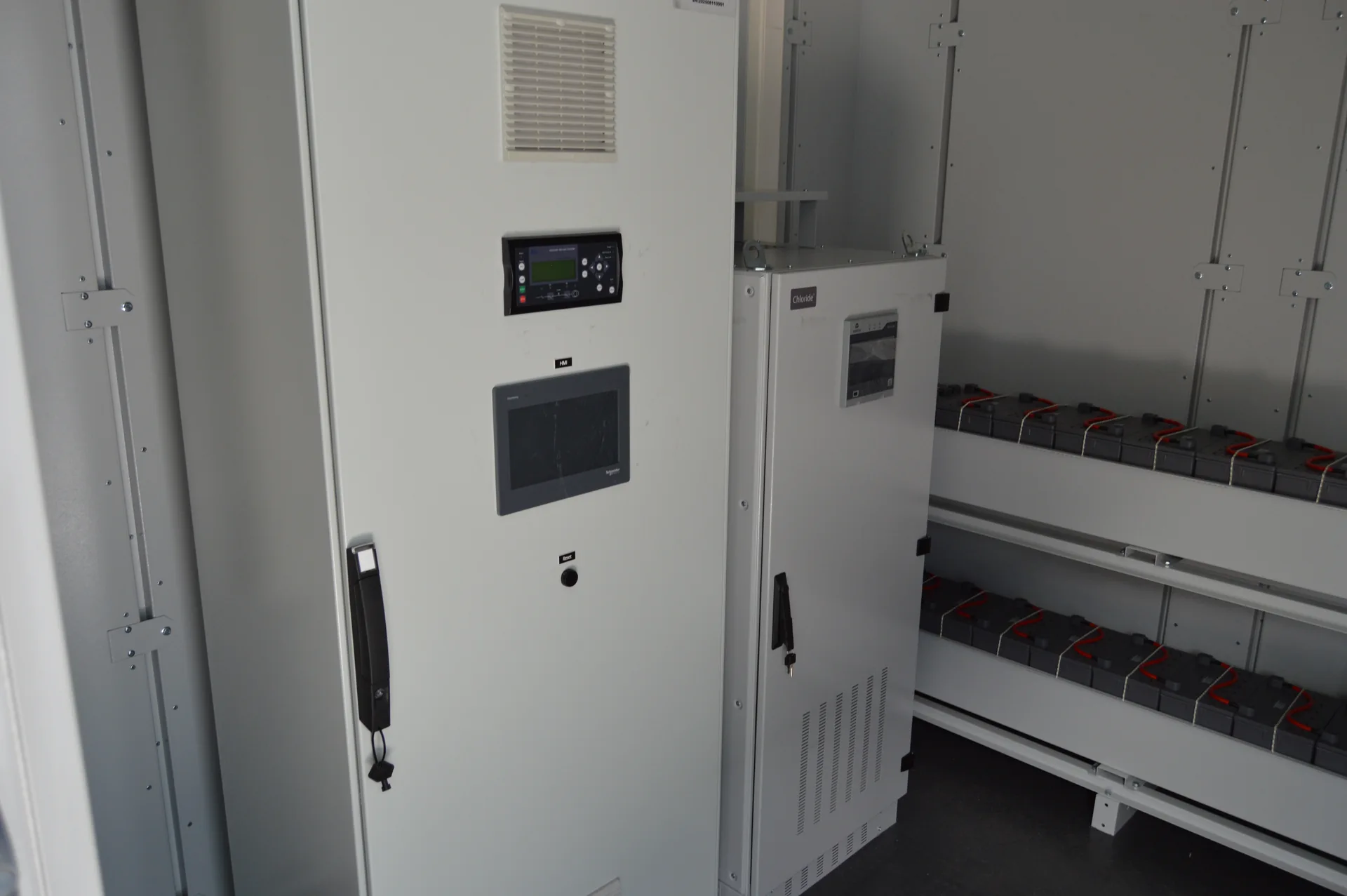

Electrical Auxiliaries, Fire Protection, Earthing & Lighting

Fire Detection & Suppression System (FM-200 / HFC-227ea)

Available as an integrated safety package across MV, LV, and Transformer compartments in compliance with NFPA 2001, EN 15004, and ISO 14520 standards.

Component / ParameterSpecification
Extinguishing AgentFM-200 (HFC-227ea) clean gas agent — electrically non-conductive, residue-free, and safe for sensitive electronic and switchgear equipment
Detection SystemCross-zoned addressable/conventional optical smoke detectors and rate-of-rise heat detectors
Control & Release PanelDedicated Fire Extinguishing Control Panel with battery backup, abort switch, manual release call point, and remote SCADA/alarm dry contacts
Discharge & PipingSeamless high-pressure steel manifold, discharge nozzles engineered for uniform compartment coverage within 10 seconds, and pressure switches
Audio-Visual AlarmsInternal and external high-decibel electronic sirens, flashing strobes, and "Gas Discharged / Do Not Enter" warning signs
Safety InterlocksAutomatic shutdown of HVAC/A/C units and ventilation fans, closing of motorized fire dampers, and optional tripping of MV/LV main breakers prior to gas discharge

Earthing & Equipotential Bonding

Main Earthing System: Electrolytic copper main earthing bar sized to station short-circuit withstand current and duration, complete with external grounding connection terminals.

Equipotential Bonding Conductor: Perimeter copper busbar), rated for system short circuit requirement.

Protective Earthing Conductors: Minimum 35 mm² cross-section green/yellow V-90 PVC-sheathed copper cables with bolted structural connections for all electrical equipment.

Non-Energized Metal Parts: Doors, shutters, and control panels bonded to the grounding circuit min 16 mm² conductors.

Active Lightning Rod : (Early Streamer Emission - ESE Air Terminal) system options

Lighting & Power Outlets

Interior Ceiling Lighting: Industrial-grade fluorescent luminaires with integrated 180-minute emergency battery kit

Emergency Exit Lighting: 3-hour backup LED Exit Sign.

Service Receptacles: Industrial power sockets

Exterior Fixtures: Optional upon customer request.
