Transportable medium-voltage to low-voltage distribution substations for civil works, industrial facilities, temporary power and emergency city-network applications.
LMZ MV/LV mobile substations combine medium-voltage switchgear, distribution transformer, low-voltage panels and auxiliary systems within a transportable structure designed for fast commissioning and relocation.
1–52 kV metal compartment, metal enclosed or gas insulated switchgear can be selected according to the project.
Distribution transformer range from 400 to 4000 kVA in the catalog configuration, coordinated with the selected MV and LV system.
630–6300 A low-voltage distribution, compensation, measurement and DC distribution panels can be integrated.
Battery drawers and chargers, control and command systems, SCADA, generator compartment and the necessary mechanical and electrical assemblies can be included.
Temporary service for civil works such as tunnels, dams and industrial plants.
Maintenance, repair or failure support for existing substations.
Temporary capacity increase where existing substation power is insufficient.
Temporary capacitor-bank or reactor solutions and emergency service in city networks.
A closer look at the mobile enclosure, transformer compartment and distribution equipment.

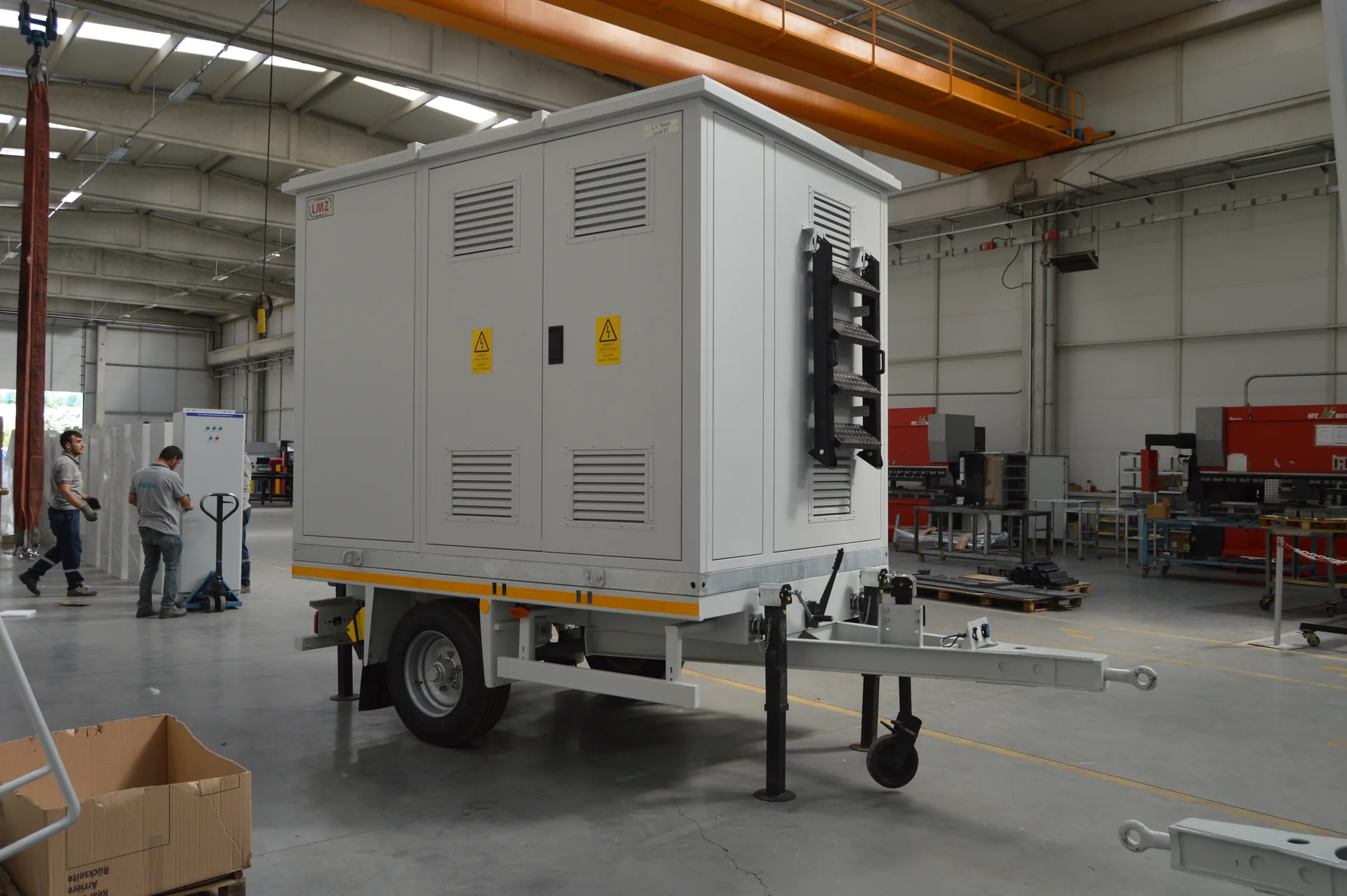

MV/LV • exterior view
MV/LV • transportable unit

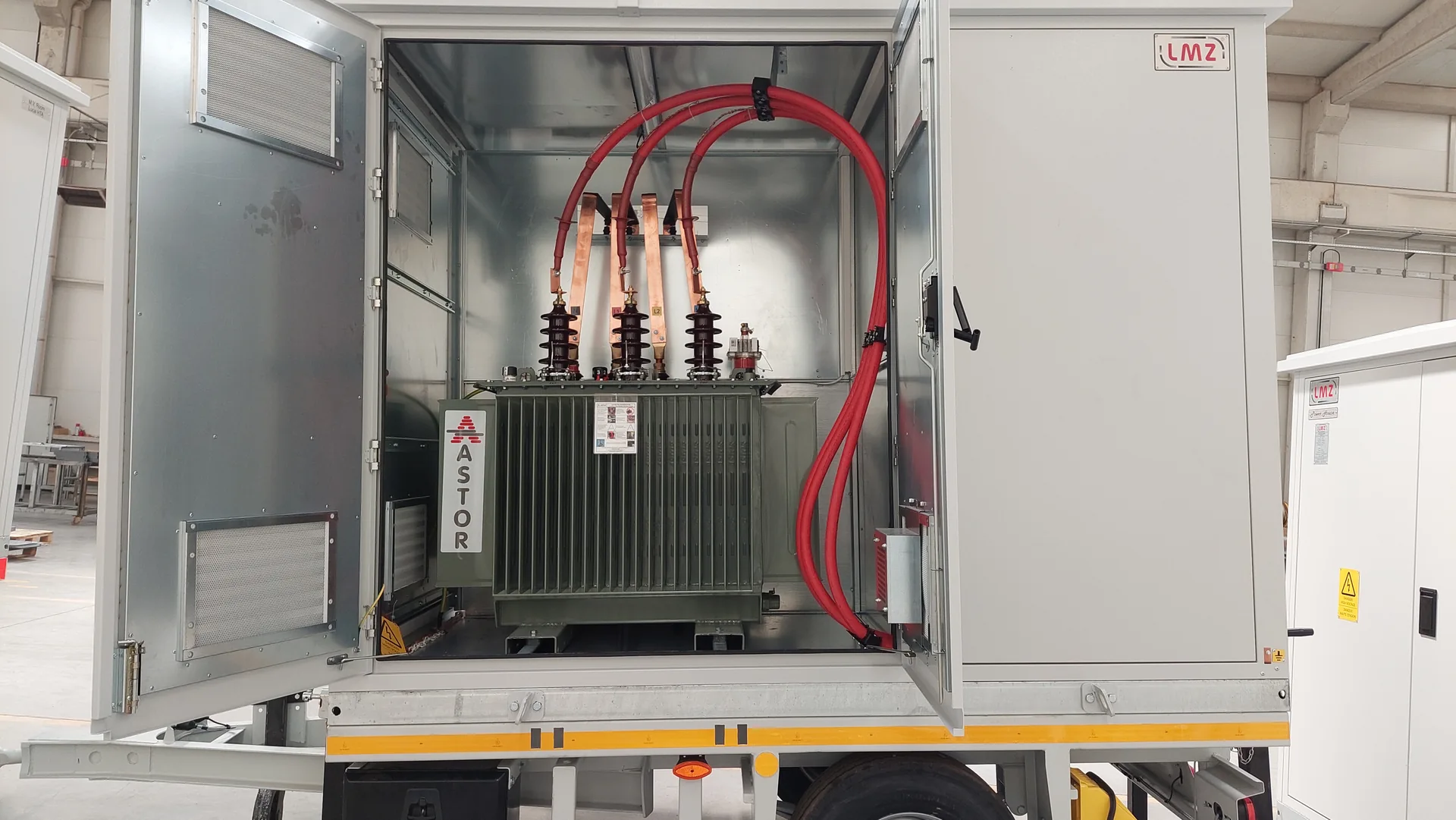

MV/LV • transformer compartment

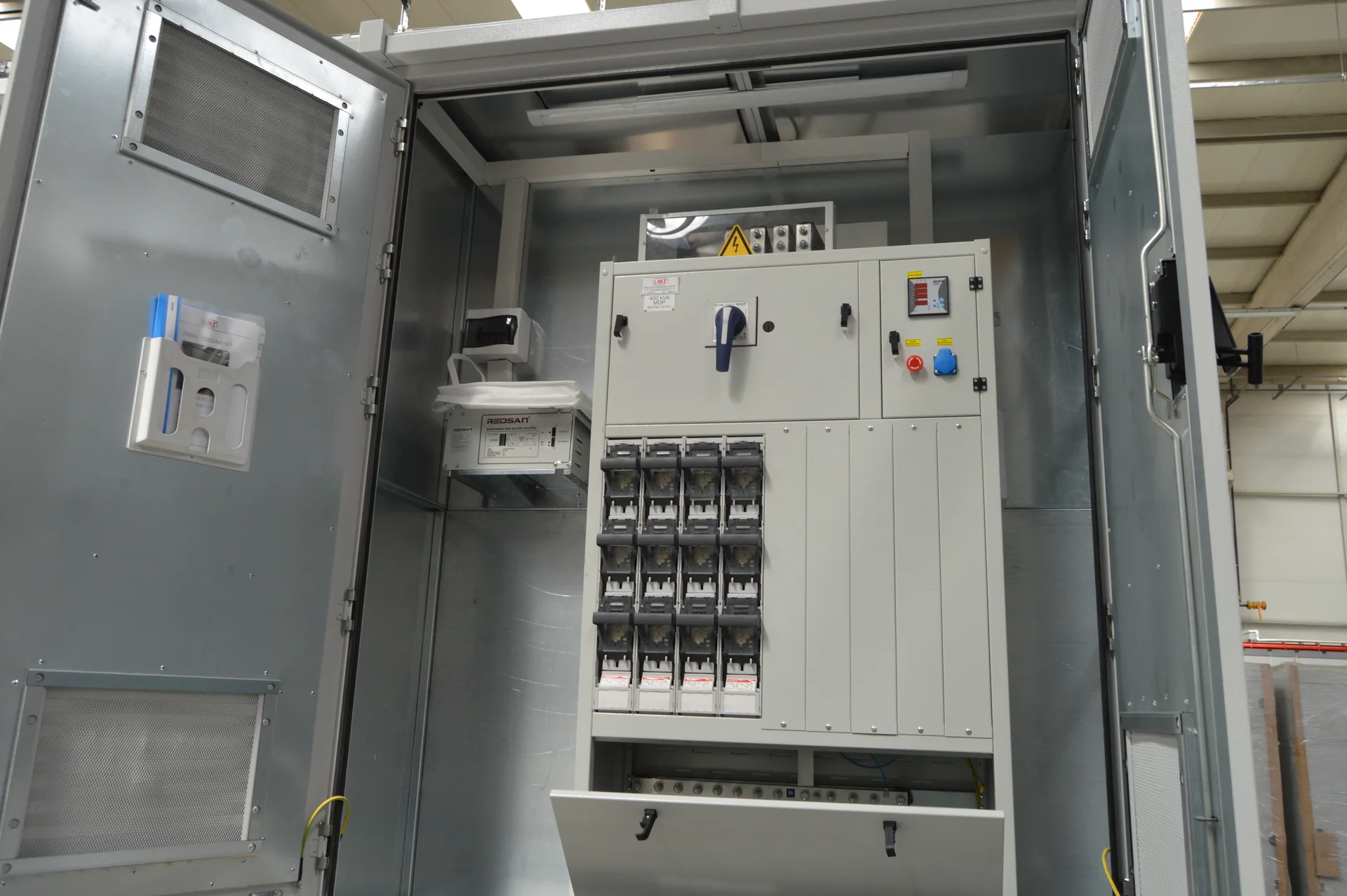

MV/LV • distribution panel
Trailer, prime mover, slide or wagon assembly according to site and transportation conditions.
Ready-for-use delivery with coordinated mechanical and electrical connections.
SCADA, safety equipment and commissioning hardware can be integrated for rapid start-up.
The mobile structure supports easy relocation when the project or emergency condition changes.
